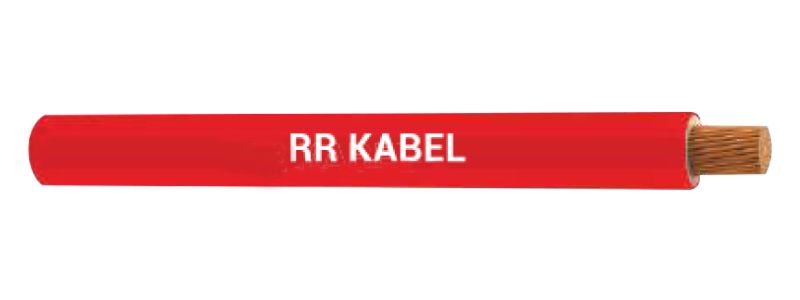

LS0H-EBXL (IS 17048)
- REACH
- RoHS
- CE
- CPR Compliant
Electron Beam Cross-linked | HFFR (Halogen Free Flame Retardant) insulation | Non-Toxic & Non-Corrosive
Application
These advanced E-Beam crosslinked halogen-free single-core cables are ideal for flexible installations in panels, cabinets, machinery, controllers and equipment used in chemical industries, oil and gas sectors, and other hazardous or fire-prone environments. They are specifically designed for industrial and commercial applications in densely populated areas, ensuring superior fire safety, low smoke emissions, and high durability.
Technical Data
Approvals: IS 17048 marked, FIA/TAC
Cable Code: XZ
Voltage Grade: Up to and including 1100V
Conductor: Flexible electrolytic annealed plain copper, class 5, IS 8130
Insulation: E-Beam Crosslinked HFI-XL 90 Halogen Free Flame Retardant (HFFR)
Packing: 200 meters in polybag packing
Properties
- Temperature range: -25°C to 110°C
- Max. short circuit temperature rating: 300°C
- Chlorine Free: Non-toxic & Non-corrosive
- Smoke emission is negligible & transparent
- Excellent water resistance properties
- Abrasion resistant
- Weather resistant
- Anti-Rodent & Anti-Termite
- Offers extented service life
- The victims trapped in fire do not suffocate and this facilitate fire fighting operations.
- Self-extinguishing and flame retardant according to IS 10810 P – 61
- Free from 245+ hazardous substance
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required :
01 – Green, 02 – Black, 03 – Red, 04 – Blue, 05 – Yellow, 06 – Green/Yellow, 07 – White, 08 – Violet, 09 – Brown, 10 – Orange, 11 – Pink, 12 – Grey.
| Part Number | Nominal Cross Sectional Area (sq, mm) | No of Strands/Max. strand dia. (mm) | Nominal Insulation Thickness (mm ) | Maximum Diameter Over insulation (mm) | Max. current carrying capacity (A) |
| 02100101xx60 | 0.5 | 16/0.2 | 0.6 | 2.6 | 8 |
| 02100102xx60 | 0.75 | 24/0.2 | 0.6 | 2.8 | 12 |
| 02100103xx60 | 1 | 32/0.2 | 0.6 | 3.0 | 21 |
| 02100104xx60 | 1.5 | 30/0.25 | 0.6 | 3.4 | 21 |
| 02100105xx60 | 2.5 | 50/0.25 | 0.7 | 4.1 | 34 |
| 02100106xx60 | 4 | 56/0.30 | 0.8 | 4.8 | 46 |
| 02100107xx60 | 6 | 84/0.30 | 0.8 | 5.3 | 59 |
Test Parameters for Assessment of Halogen
| Test | Test Method | Values |
| pH | IS 17048 | ≥ 4.3 |
| Conductivity | IS 17048 | ≤ 10 μs/mm |
| Chlorine and bromine expressed as content of HCL | IS 10810 P – 59 | ≤ 0.5 % |
| Presence of fluorine | IS 17048 | ≤ 0.1 % |
