Mahashield FR HSF
- REACH
- RoHS
- CE
- CPR Compliant
Available in Maharashtra Only :
MahaShield FR HSF is currently available exclusively in Maharashtra. Contact your local RR KABEL dealer for availability.

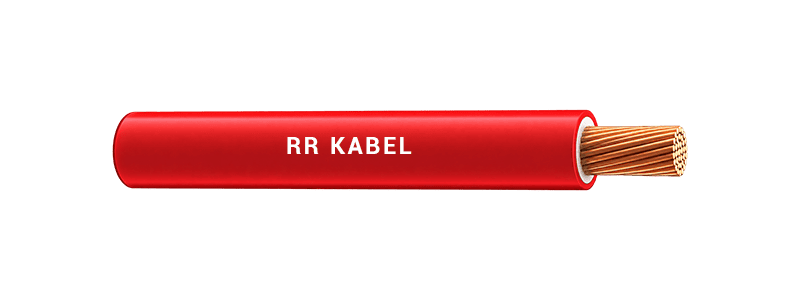

Super Flexible Flame Retardant Single Core Cable
Application
Mahashield FR HSF is highly flexible single core wire with copper conductors engineered for seamless routing through complex conduit layouts powering lighting circuits, switches and electrical outlets, to meet everyday wiring needs with flame-retardant insulation and eco-conscious construction.
Technical Data
Approvals: IS 694 marked, FIA/TAC
Voltage Grade: Up to and including 1100 V
Conductor: Fine strands of electrolytic Annealed Plain Copper are multi-drawn for uniformity of resistance, dimension and flexibility.
Insulation: Specially formulated flame retardant PVC insulation with anti rodent and anti termite properties. The FR property retards the propagation of flame without compromising safety.
Insulation Conformity: IS 5831, Type D FR 70°C.
Colours: Red, yellow, blue, black, green, grey & white
Marking: The cables is printed with marking of ‘MAHASHIELD FR HSF’.
Packing: 90 mtr. coil is packed in protective cartons.
Properties
- Excellent flexibility and ease Of installation
- Temperature Range: -15° C to +70° C
- Self extinguishing and Flame Retardant
- Anti-Rodent & Anti-Termite
- 100% Electrolytic Grade pure Copper
- Lead and Mercury Free
Cable Design Parameters
| Nominal Cross Sectional Area (sq. mm) | **Number of strands/ Max. dia. of each strands (mm) | Nominal / Insulation Thickness (mm) | Approx. Overall Dia. (mm) | Max. DC Conductor Resistance at 20°C (Ω/km) | *Current Rating (Amps) | |
| Casing | Concealed | |||||
| 0.75 | 24/0.21 | 0.6 | 2.3 | 26.0 | 9 | 8 |
| 1.0 | 32/0.21 | 0.6 | 2.6 | 19.5 | 12 | 11 |
| 1.5 | 30/0.26 | 0.6 | 2.8 | 13.3 | 16 | 15 |
| 2.5 | 50/0.26 | 0.7 | 3.4 | 7.98 | 23 | 19 |
| 4.0 | 56/0.31 | 0.8 | 4.1 | 4.95 | 30 | 26 |
| 6.0 | 84/0.31 | 0.8 | 4.6 | 3.3 | 38 | 33 |
- *As per IS 3961 (Part V) – 1968
- ** As per conductor Class 5 of IS 8130
Properties
| Test | Test Method | Values |
| Limited Oxygen Index | IS 10810 P-58 | ≥ 29 % |
| Limited Temp. Index | IS 10810 P-64 | ≥ 250° % |
*Construction Product Regulation (CPR) is a regulation issued by the European Union with the purpose of regulating the limits of fire resistance and dangerous substances in the materials used in construction. This regulation applies to all products intended to be incorporated, permanently, in construction. Above link provides the DOP (declaration of performance) for the CPR compliance for the product.)
