RR-V05 DECORATIVE-66” RR-V05 DECORATIVE-100” RR-V05 H(8’-12’) RR-V05 H(8’-12’) RR-V05 H(8’-12’)RR PMSM HVLS Fans
The air produced from a HVLS fan moves towards the floor in a column that radiates in all direction, flowing horizontally until it reaches a wall – or the airflow from another fan – at which stage the air flow turns upwards and flows back towards the fan. This creates convection like air current that builds as the fan continues to spin. The increased air circulation effectively removes hot, humid air and replaces it with drier air. This process allows for a complete mixing of air in the atmosphere resulting in perceived temperature drop of 3 to 5 degrees, depending on the season.

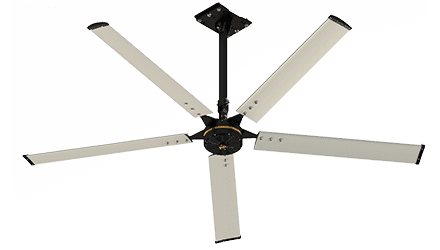

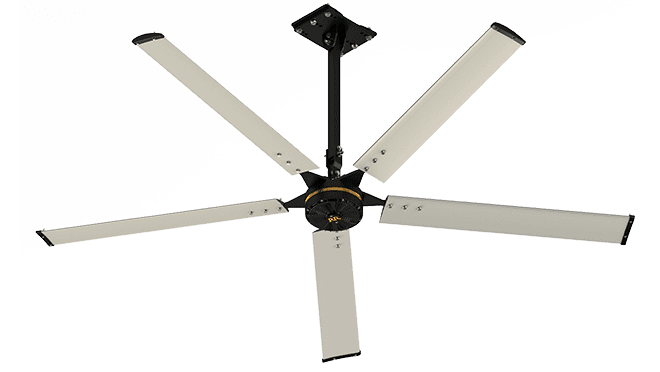

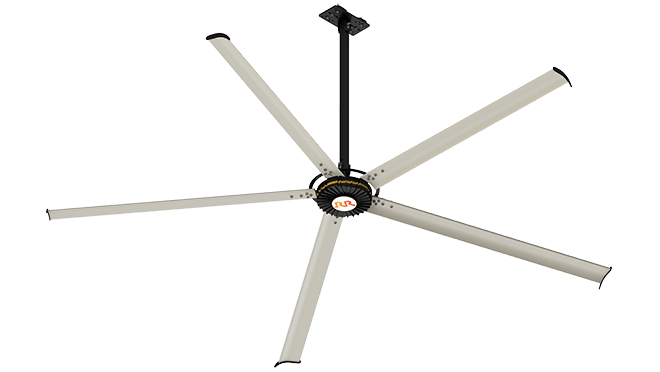

PMSM HVLS FANS
Permanent Magnet Synchronous Motorised (PMSM) HVLS Fan series from RR has been conceptualized and developed at our in-house R&D centre. It has a light and stylish design with the fan blades made from aviation grade aluminum that makes them stronger and more effcient. The winglets help in reducing air resistance and noise, reaching optimal silent performance at low speeds. Our PMSM HVLS Fan is certified with ISO 9001:2015 and made using only world class industrial grade components and spare parts of the highest quality. We ensure the most efficient and reliable fan for you to use.
INHOUSE MANUFACTURING
LIGHT WEIGHT
SILENT DESIGN
PMSM MOTOR
ENERGY SAVING
MAINTAINANCE FREE | RR BLDC / PMSM HVLS FANS | |||||||||||
| Model | RR-V05 DECORATIVE | RR-V05 DECORATIVE | RR-V05 L-8 | RR-V05 L-10 | RR-V05 L-12 | RR-V05 H-8 | RR-V05 H-10 | RR-V05 H-12 | RR-V06 R-16 | RR-V06 R-20 | RR-V06 R-24 |
| Diametre | 66 Inch | 100 Inch | 8 Feet | 10 Feet | 12 Feet | 8 Feet | 10 Feet | 12 Feet | 16 Feet | 20 Feet | 24 Feet |
| Input Power | SINGLE PHASE 230 VOLT, 50 HZ | ||||||||||
| No. of Blade | 8 | 6 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Blade Material | ABS | ABS | AVIATION GRADE EXTRUDED ALUMINIUM ALLOY 6063-T | ||||||||
| Approximate Fan Weight [kg] | 12 | 15 | 32 | 33 | 35 | 45 | 53 | 54 | 84 | 89 | 95 |
| Power (W) | 60 | 65 | 120 | 175 | 350 | 150 | 200 | 400 | 700 | 1000 | 1300 |
| Max.RPM | 115 | 100 | 140 | 120 | 110 | 110 | 100 | 95 | 75 | 65 | 55 |
| Sound Level of Motor | ≤30 | ≤30 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤45 | ≤45 | ≤45 |
| Motor Colour | White/Brown/Black | White/Brown/Black | Black | Black | Black | Black | Black | Black | Black | Black | Black |
| Blade Colour | White/Brown/Black | White/Brown/Black | Black | Black | Black | Siemens Grey | Siemens Grey | Siemens Grey | Siemens Grey | Siemens Grey | Siemens Grey |

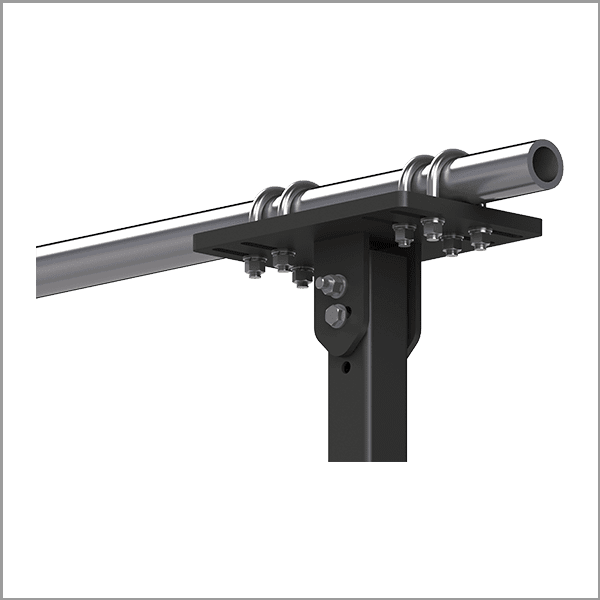

ROUND PIPE MOUNTING

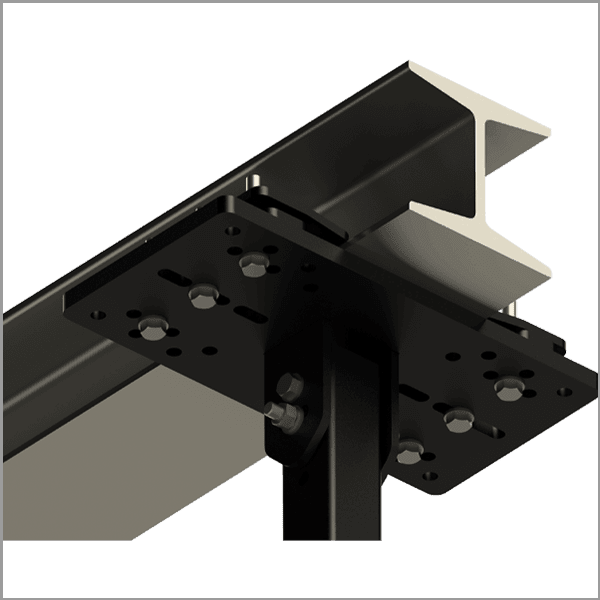

I-BEAM MOUNTING

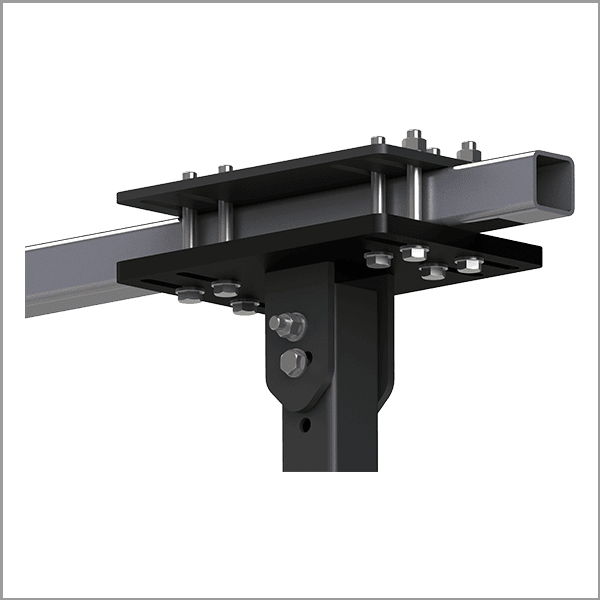

SQUARE PIPE MOUNTING

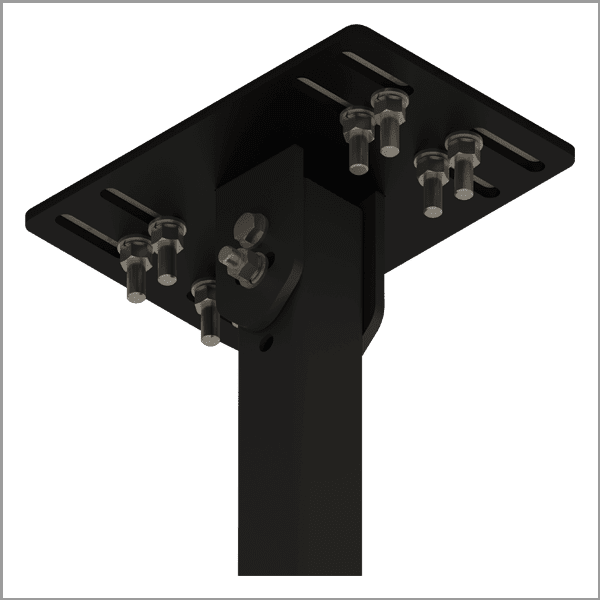

RCC MOUNTING
MANUFACTURING UNITS
SHOPPING MALL
RAILWAYS TERMINALS
RELIGIOUS TERMINALS
COW SHEAD/POULTRY
BUS TERMINALS
WARE HOUSE
FOOD COURT
AIR PORT
GYMNASIUM
