THHN/THWN/THWN-2 cables are widely used in conduits, cable trays and other permitted raceways for services, feeders and branch circuits across commercial, industrial and institutional installations, in accordance with the National Electrical Code (NEC).
⦁ THHN is suitable only for dry locations, with a maximum operating temperature of 90°C.
⦁ THWN / THWN-2 is suitable for both wet and dry locations, also rated for 90°C operating temperature.
Their versatility, durability and compliance with NEC requirements make them a preferred choice for modern electrical infrastructure.

Cable Construction

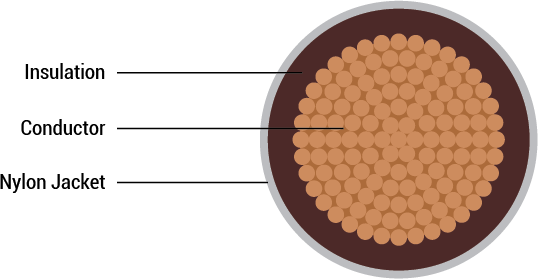

Conductor: Annealed plain solid or stranded soft drawn copper conductor or compact bare class B stranded AA-8000 series aluminum conductor, as per ASTM standards

Insulation: Heat and moisture resistant colored polyvinyl chloride (PVC) insulation, with a clear nylon (polyamide)

Technical Data

Standard: UL 83, ASTM B800, B801, B836

Voltage Grade: 600 V

Temperature Rating: +90^oC

Minimum bending radius: Up to 4 AWG – 5 x cable diameter, Up to 3/0 AWG – 7 x cable diameter, above 3/0 AWG – 8 x cable diameter

Self extinguishing and Flame Retardant according to VW-1 / FT 1

Sunlight resistant

Oil and Chemical resistant

For CT use – 1/0 AWG and above

Cabel Design Parameters

Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required:
01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 – violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey.

THHN / THWN / THWN-2 – Copper Conductor

Part Number	Conductor Size	No.of Strands	Conductor Diameter		Approx. Insulation Thickness – PVC		Approx. Insulation Thickness – Nylon		Approx. Cable Diameter		Approx. Net Weight		Ampacity at 90°C
Part Number	AWG / Kcmil	No.of Strands	Inches	mm	Inches	mm	Inches	mm	Inches	mm	lb/kft	Kg/Km	Amps
01210101xx30	14	Solid	0.064	1.6	0.015	0.38	0.004	0.1	0.11	2.8	16	24	25
01210102xx30	14	19	0.073	1.9	0.015	0.38	0.004	0.1	0.12	3.1	16	24	25
01210103xx30	12	Solid	0.081	2.1	0.015	0.38	0.004	0.1	0.13	3.3	24	36	30
01210104xx30	12	19	0.091	2.3	0.015	0.38	0.004	0.1	0.14	3.6	25	37	30
01210105xx30	10	Solid	0.102	2.6	0.02	0.51	0.004	0.1	0.16	4.1	38	57	40
01210106xx30	10	19	0.116	3.0	0.02	0.51	0.004	0.1	0.17	4.3	39	58	40
01210107xx30	8	19	0.146	3.7	0.03	0.76	0.004	0.1	0.23	5.8	66	98	55
01210108xx30	6	19	0.184	4.7	0.03	0.76	0.005	0.13	0.25	6.4	98	146	75
01210109xx30	4	19	0.232	5.9	0.04	1.02	0.006	0.15	0.33	8.4	155	231	95
01210110xx30	3	19	0.260	6.6	0.04	1.02	0.006	0.15	0.36	9.1	190	283	115
01210111xx30	2	19	0.292	7.4	0.04	1.02	0.006	0.15	0.39	9.9	235	350	130
01210112xx30	1	19	0.332	8.4	0.05	1.27	0.007	0.18	0.45	11.4	300	446	145
01210113xx30	1/0	19	0.372	9.5	0.05	1.27	0.007	0.18	0.5	12.7	370	551	170
01210114xx30	2/0	19	0.418	10.6	0.05	1.27	0.007	0.18	0.54	13.7	460	685	195
01210115xx30	3/0	19	0.470	11.9	0.05	1.27	0.007	0.18	0.6	15.2	570	848	225
01210116xx30	4/0	19	0.528	13.4	0.05	1.27	0.007	0.18	0.66	16.8	710	1057	260
01210117xx30	250	37	0.576	14.6	0.06	1.52	0.008	0.2	0.72	18.3	845	1258	290
01210118xx30	300	37	0.630	16.0	0.06	1.52	0.008	0.2	0.766	19.5	985	1466	320
01210119xx30	350	37	0.680	17.3	0.06	1.52	0.008	0.2	0.83	21.1	1165	1734	350
01210120xx30	400	37	0.729	18.5	0.06	1.52	0.008	0.2	0.864	22.0	1296	1929	380
01210121xx30	500	37	0.813	20.7	0.06	1.52	0.008	0.2	0.96	24.4	1640	2441	430
01210122xx30	600	61	0.893	22.7	0.07	1.78	0.009	0.23	1.051	26.7	1934	2878	475
01210123xx30	750	61	0.998	25.4	0.07	1.78	0.009	0.23	1.17	29.7	2480	3691	520
01210124xx30	1000	61	1.152	29.3	0.07	1.78	0.009	0.23	1.32	33.5	3300	4911	615

THHN / THWN / THWN-2 – Aluminium Conductor

Part Number	Conductor Size	No.of Strands	Conductor Diameter		Approx. Insulation Thickness – PVC		Approx. Insulation Thickness – Nylon		Approx. Cable Diameter		Approx. Net Weight		Ampacity at 90°C
Part Number	AWG / Kcmil	No.of Strands	Inches	mm	Inches	mm	Inches	mm	Inches	mm	lb/kft	Kg/Km	Amps
01210201xx30	6	7	0.169	4.29	0.03	0.76	0.005	0.13	0.239	6.1	38	57	55
01210202xx30	4	7	0.213	5.41	0.04	1.02	0.006	0.15	0.305	7.8	62	92	75
01210203xx30	2	7	0.268	6.81	0.04	1.02	0.006	0.15	0.36	9.1	91	135	100
01210204xx30	1	19	0.299	7.59	0.05	1.27	0.007	0.18	0.413	10.5	117	174	115
01210205xx30	1/0	19	0.335	8.51	0.05	1.27	0.007	0.18	0.45	11.4	141	210	135
01210206xx30	2/0	19	0.378	9.6	0.05	1.27	0.007	0.18	0.49	12.5	172	256	150
01210207xx30	3/0	19	0.423	10.74	0.05	1.27	0.007	0.18	0.537	13.6	210	313	175
01210208xx30	4/0	19	0.476	12.09	0.05	1.27	0.007	0.18	0.589	15.0	257	383	205
01210209xx30	250	37	0.52	13.21	0.06	1.52	0.008	0.20	0.656	16.7	311	463	230
01210210xx30	300	37	0.571	14.5	0.06	1.52	0.008	0.20	0.706	17.9	365	543	260
01210211xx30	350	37	0.614	15.6	0.06	1.52	0.008	0.20	0.752	19.1	418	622	280
01210212xx30	400	37	0.657	16.69	0.06	1.52	0.008	0.20	0.795	20.2	471	701	305
01210213xx30	500	37	0.736	18.69	0.06	1.52	0.008	0.20	0.872	22.2	576	857	350
01210214xx30	600	61	0.816	20.73	0.07	1.78	0.009	0.23	0.971	24.7	700	1042	385
01210215xx30	700	61	0.877	22.28	0.07	1.78	0.009	0.23	1.035	26.3	804	1196	425
01210216xx30	750	61	0.909	23.09	0.07	1.78	0.009	0.23	1.066	27.1	856	1274	435
01210217xx30	900	61	0.999	25.37	0.07	1.78	0.009	0.23	1.139	28.9	1013	1508	480
01210218xx30	1000	61	1.059	26.9	0.07	1.78	0.009	0.23	1.218	30.9	1117	1662	500
